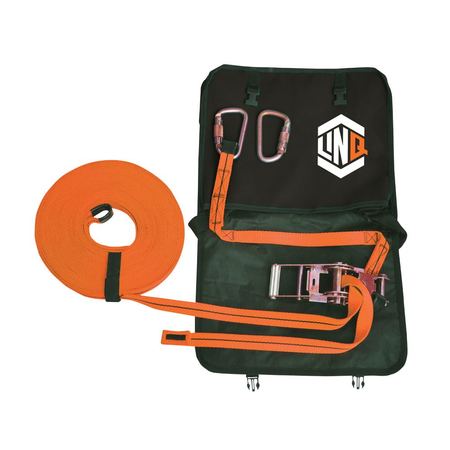

Linq Temporary Anchor Line 2-Man

• Can be used as a temporary system mobile anchorage line
in applications where there is no permanent anchorage line
along a length.
• Suitable for use by two people simultaneously.
• Consists of 30mm 60kN polyester webbing lifeline.
• Kit has an easy to use 35kN ratchet tensioning device
to tighten the line.
• Ideal for usage between 3 to 20 metres.
• Equipped with two 25kN double action karabiners provided
for attachment to anchor points.
• Includes ‘sewn on bag’ for easy storage and transportation.
• Easy installation and removal

AS/NZS1891.2:
Static Strength requirement:
• Webbing must withstand a force equal to the maximum fall
arrest force in the line multiplied by a safety factor of 4.
i.e. 2 man system, 6kN + 6kN multiplied by 4 = 48kN.
Actual MBL of webbing = 60kN.
• Line termination hardware resists a static breaking force
of 2 x the maximum fall arrest force in the line.
i.e. 2 man system, 6kN + 6kN multiplied by 2 = 24kN.
• End anchor hardware is designed to resist and transfer to the
structural anchorage
a) a force along the axis of the line in the anchorage of 2 x the
maximum fall arrest force.
b) a force of 12kN acting at 90° to the axis of the line and in the
direction of the loading if there is a fall close to the anchorage.
Dynamic Strength requirement:
• To hold a 100kg rigid dummy on a vertical drop of 3.8m.
EN795:2012:
• Static Strength: 15kN for 3 minutes.
• Dynamic Performance: Maximum breaking force does not
exceed 6kN in the line when tested on a free falling mass
of 100kg.
COMPLETE SYSTEM COMPLIANCE to EN:
• Static Strength: 10kN for 30 minutes.
• Dynamic Performance: 2m free fall with 100kg weight.
• Maximum Length: 20m
• Maximum Deflection: 20m
• Weight: 3.0kg ± 10gm

Construction/Demolition, Utilities, Roof work, Ventilation
Installation, Oil Rig Maintenance, Rigging, Maintenance Work,
Scaffolding Work.
