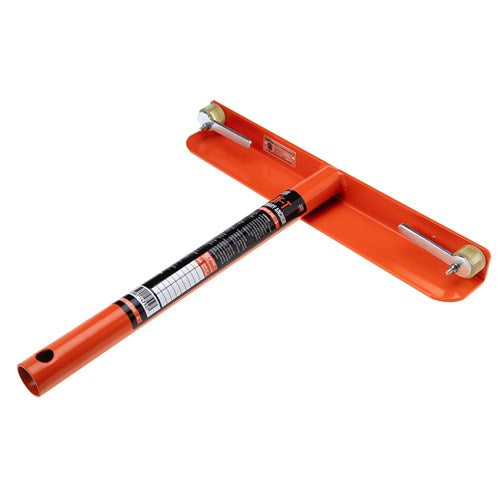

LINQ TETHA ROOF T BAR TEMPORARY ANCHOR PLATE

-The LINQ Tetha Roof T Bar temporary anchor plate is engineered for extreme workplace situations.
-Boasting a minimum breaking strength of 15kN, the range has been developed to be a durable and efficient temporary roof line anchor system.
-It is important to ensure that the structure to which any LINQ Tetha Roof T-Bar is installed, has sufficient strength (refer to ASNZS 1891.4) to sustain the applied load.
-The Tetha T-Bar has an easy to use camlock, no fixing required.
-Install within seconds
-Can be used as a temporary anchor point in applications along a roof line where no permanent anchor point exists.
-Quick installation and removal. (Installation should always be conducted by a competent person as described in ASNZS 1891.4).
-Suitable for Fall Arrest application on metal roofs. To be used on metal clad roofs only.

Conforms to ASNZS 1891.4 requirements. Conforms to ASNZS 5532:2013 (NOTE the ultimate strength is directly related to the strength of the structure to which the LINQ Tetha anchor plate is installed, it is prudent practice to ensure that structure strength meets criteria and in assessing this it is recommended that the opinion of a qualified person (e.g. a structural engineer) is obtained. Passed the corrosion test in accordance with ISO 9227:1990 – 24 hours. LINQ conducts testing over a 48 hour period.
